CASE STUDY 01 / ECOMMERCE OPERATIONS
Shopify fulfillment &Shipment notifications.
Connect Shopify fulfillment, shipment tracking, and customer notifications through a database-backed queue with checks and recovery monitors.
System overview
Inspect the workflowsFrom order intake to shipment communication, each handoff records state so staff can review exceptions and recover incomplete work.
Order received
Receive the order and tracking details, then check intake claims to coordinate repeat or concurrent events.
Fulfillment checked
Confirm that exactly one fulfillment order is eligible. Route ambiguous orders to staff review before committing.
Tracking synchronized
Register tracking with AfterShip and validate signed status updates before synchronizing shipment state.
Customer notified
Queue customer updates in a durable outbox. Record delivery state and verify uncertain sends before retrying.
Durable outbox · recovery monitors
- Duplicate prevention
- Intake claims and fulfillment locks coordinate repeat events and concurrent processing.
- Delivery recovery
- Outbox delivery and reconciliation separate incoming events from confirmed customer notifications.
- Operational visibility
- Recovery monitors surface stalled fulfillment, tracking registration, and queued notification work.
THE CHALLENGE
The operational challenge.
Fulfillment, tracking updates, and customer communication span multiple tools. Manual handoffs create coordination work, while retries risk repeating actions that have already succeeded.
THE SOLUTION
The system design.
The system connects Shopify fulfillment to AfterShip tracking and a database-backed notification queue. Staff provide tracking details, automated checks control fulfillment, and monitors surface work that needs attention.
DESIGNING THE SYSTEM
Key engineering decisions.
Check before committing.
Database intake claims and fulfillment locks coordinate processing. Orders with anything other than one eligible fulfillment order are routed for review.
Recover without guessing.
When an external action succeeds but local persistence is uncertain, reconciliation checks external state before retrying. A durable outbox separates event intake from notification delivery.
Keep communication controlled.
HMAC-validated shipment webhooks feed seven notification templates. Recipient details come from trusted database records, with test and live send gates.

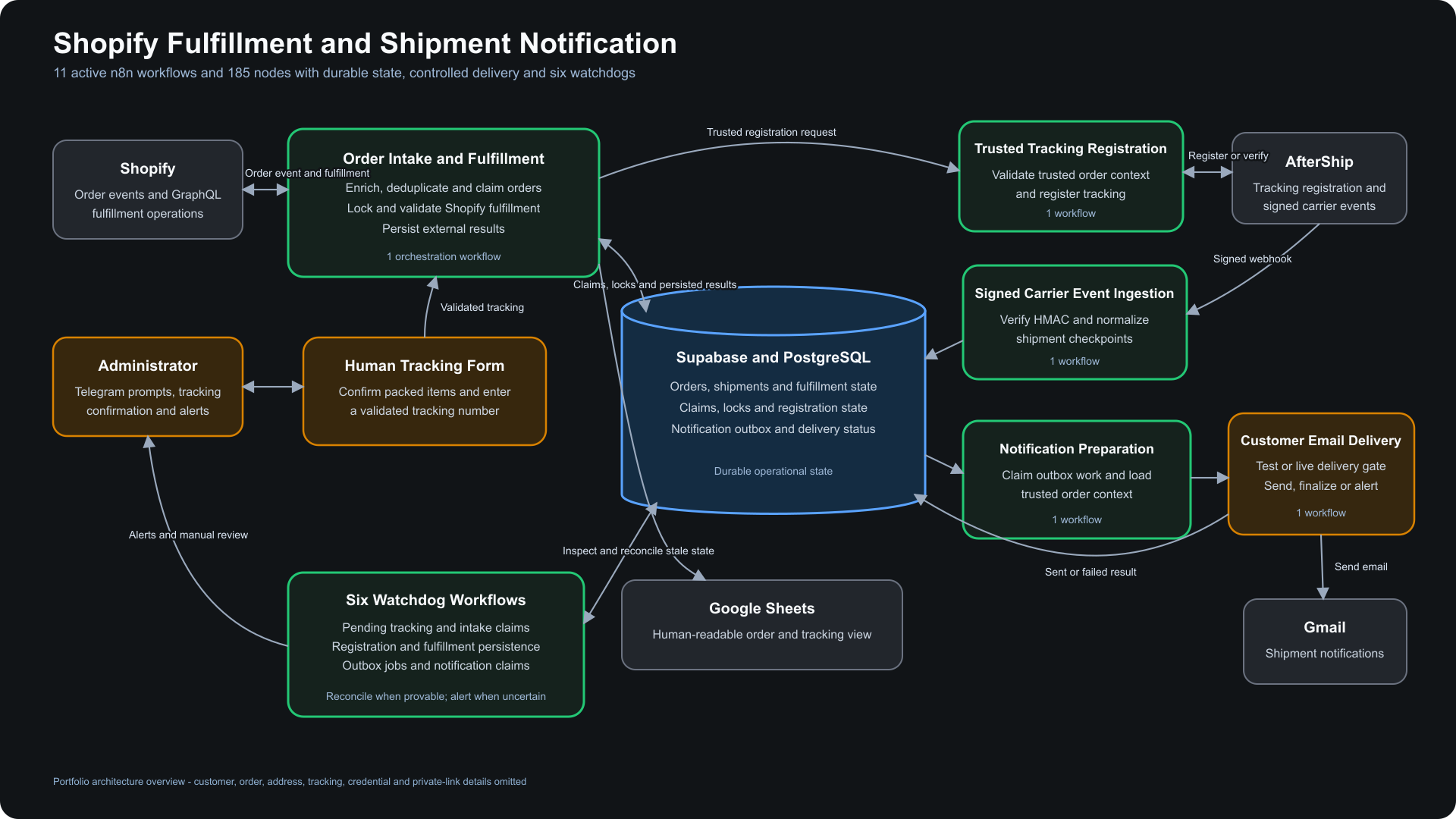

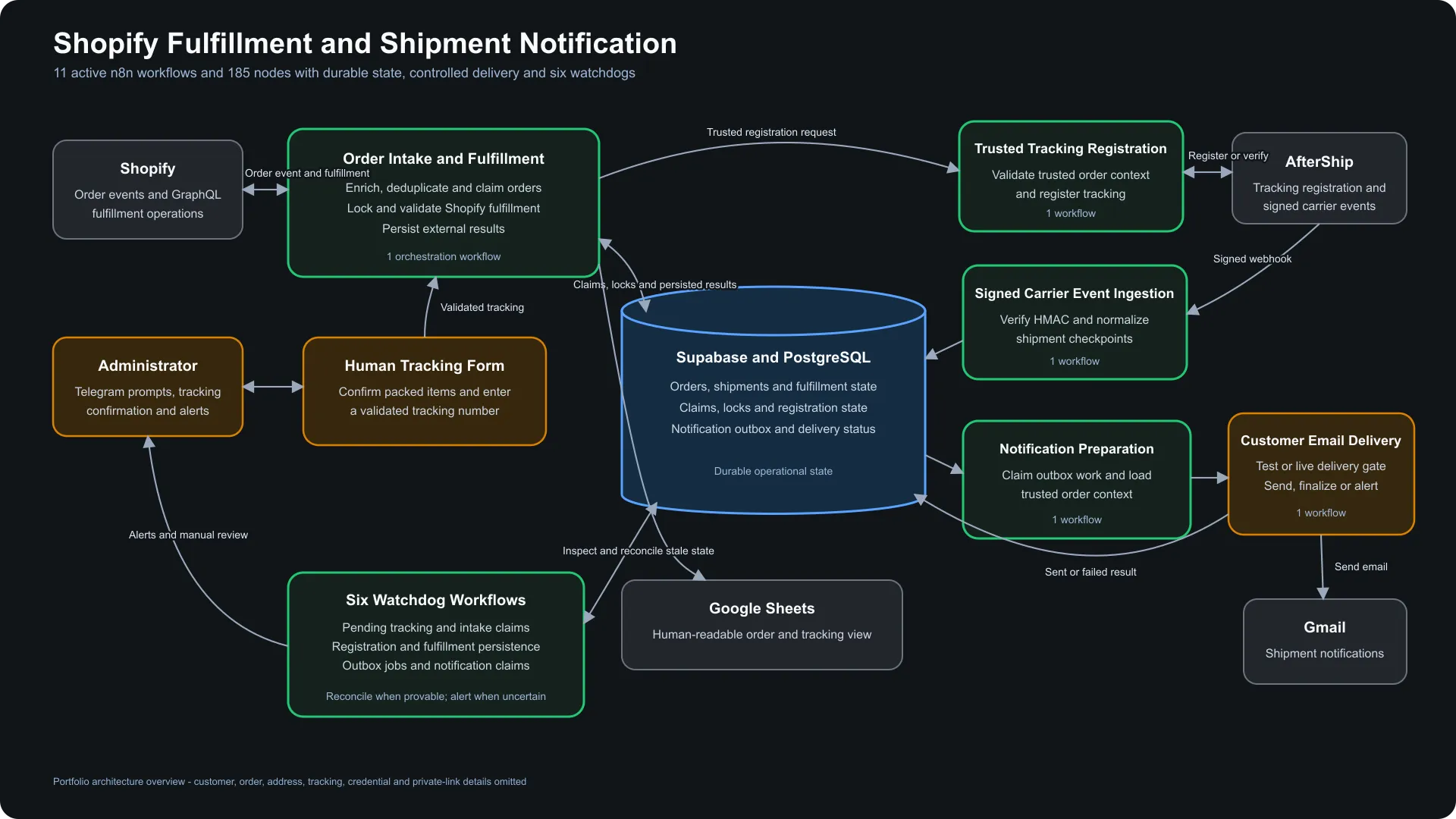

SYSTEM ARCHITECTURE
Integrations and recovery paths.
The overview above shows the main path. Explore the architecture for the integrations, decision points, and recovery paths behind it.
INSIDE THE SYSTEM
Explore the actual workflows.
Inspect the intake paths, integrations, review steps, and recovery routines behind this system. Open any screenshot to read the original n8n canvas.
Intake & fulfillment

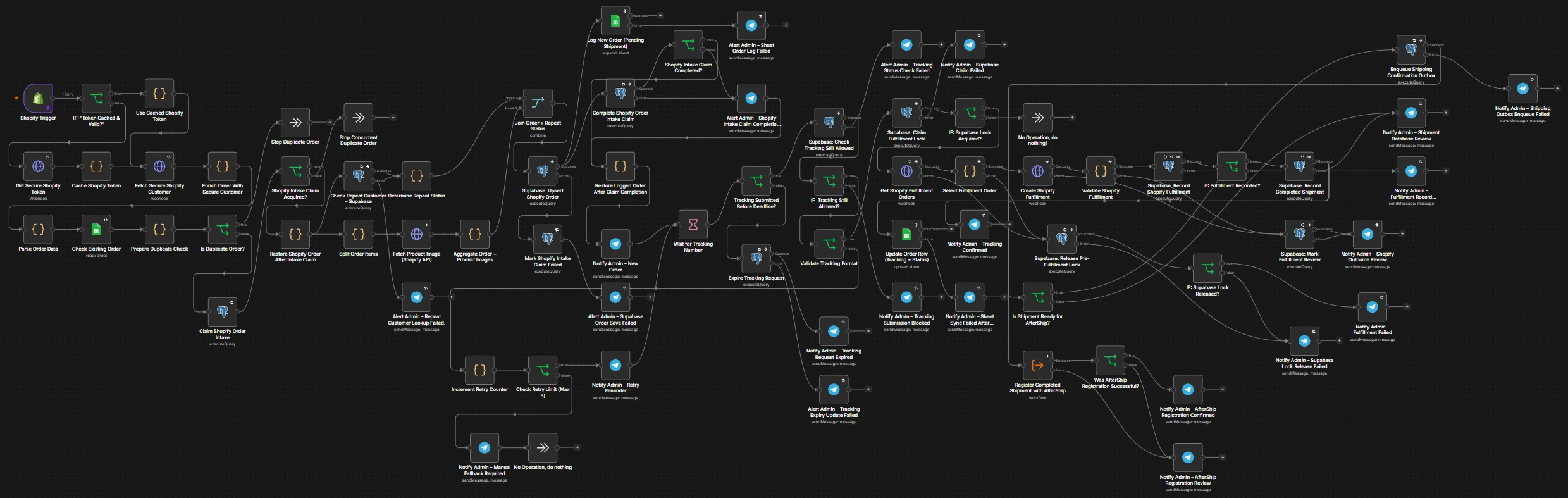

Fulfillment & shipping confirmation
The main fulfillment canvas connects order intake, fulfillment checks, database state, and staff notifications.
Tracking & notifications

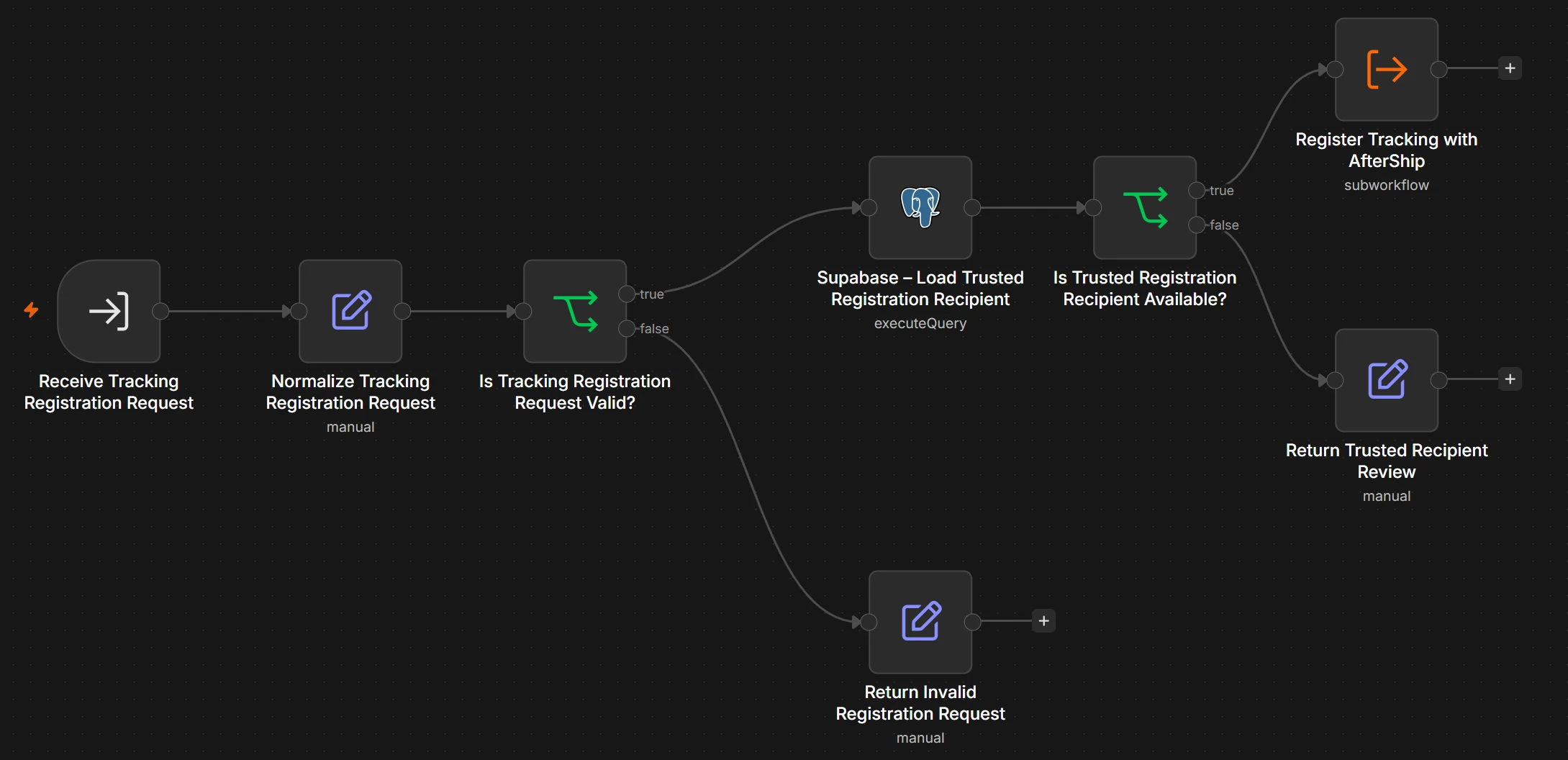

Tracking intake validation
Validates tracking registration requests and loads the trusted recipient before passing work to registration.

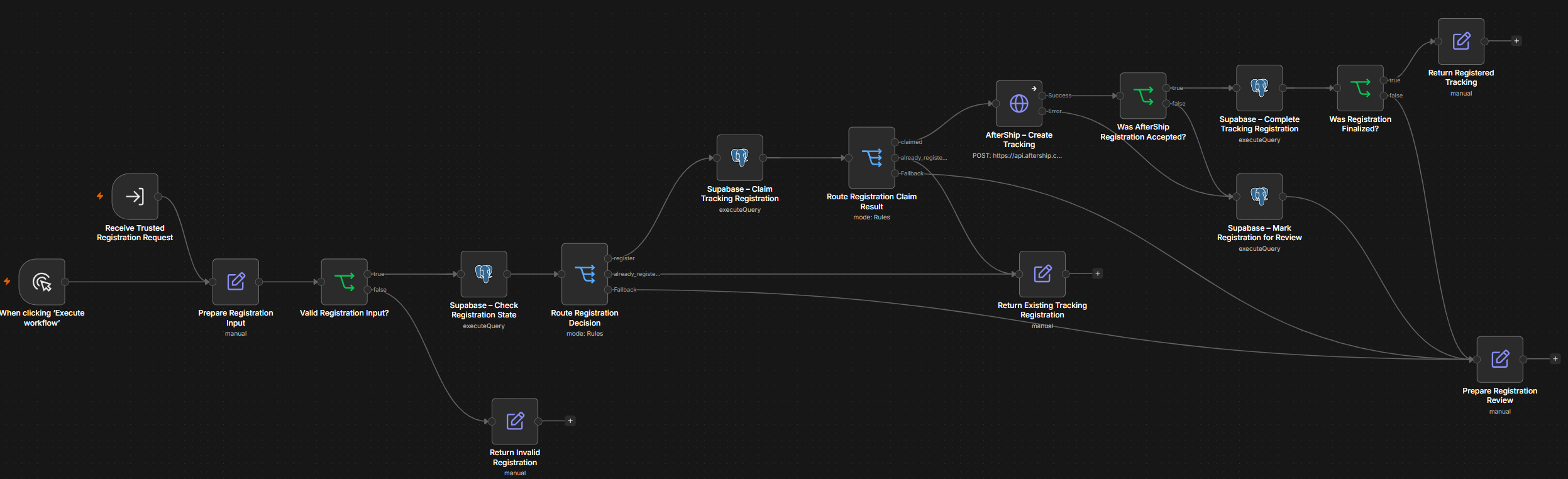

Tracking registration
Coordinates registration claims, AfterShip requests, database completion, and failed-registration review.
Shipment status updates
Validates webhook signatures, normalizes tracking events, and queues updates for customer communication.

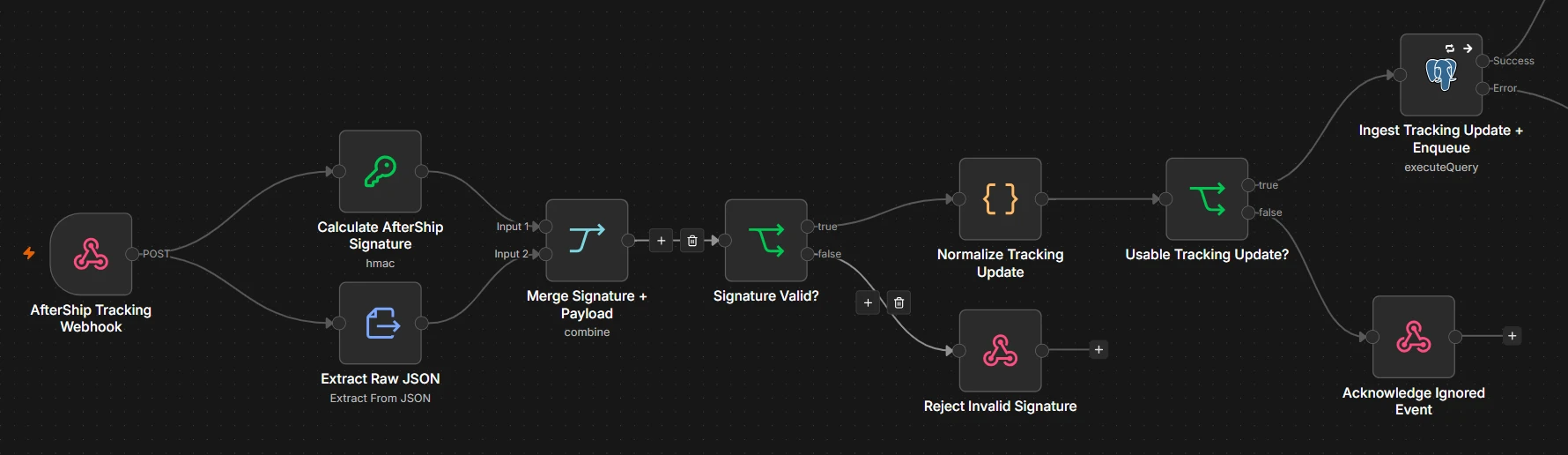

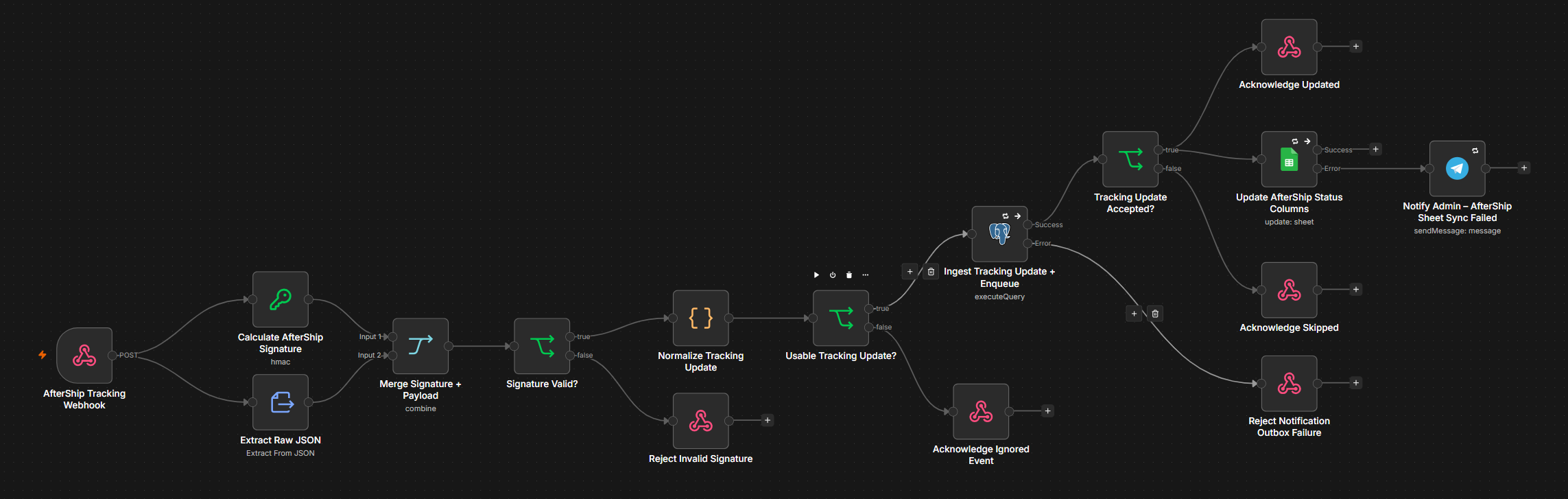

Webhook validation close-up
Detail viewDetail view of signature checking, raw JSON extraction, event normalization, and tracking-update intake.

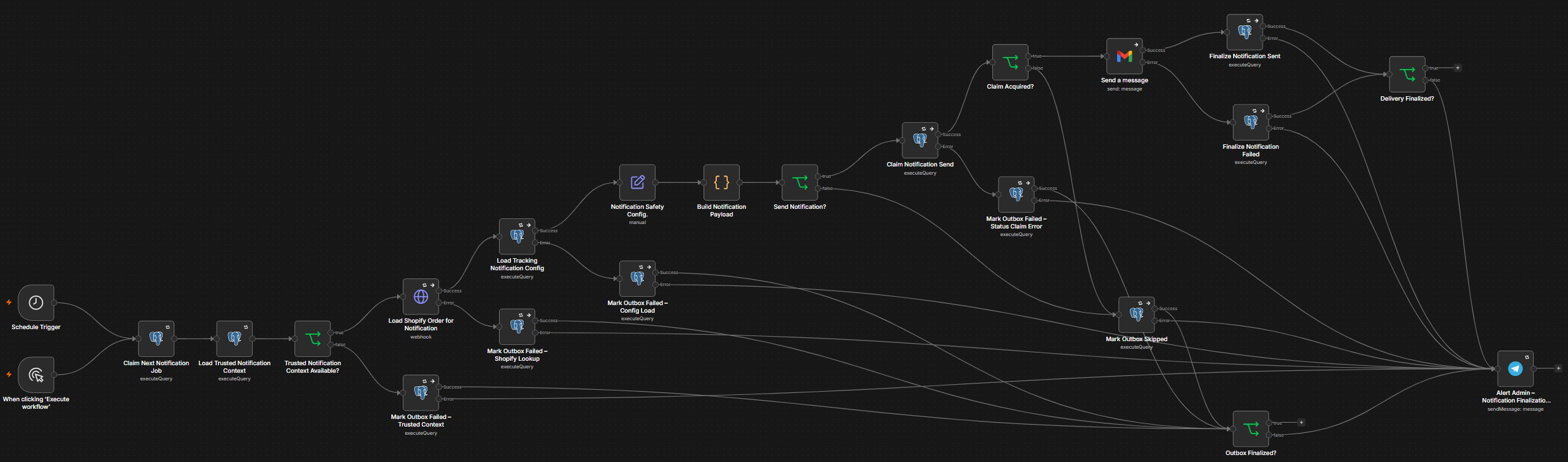

Notification outbox worker
Processes queued notifications through send and verification paths, then updates delivery state.
Monitoring & recovery

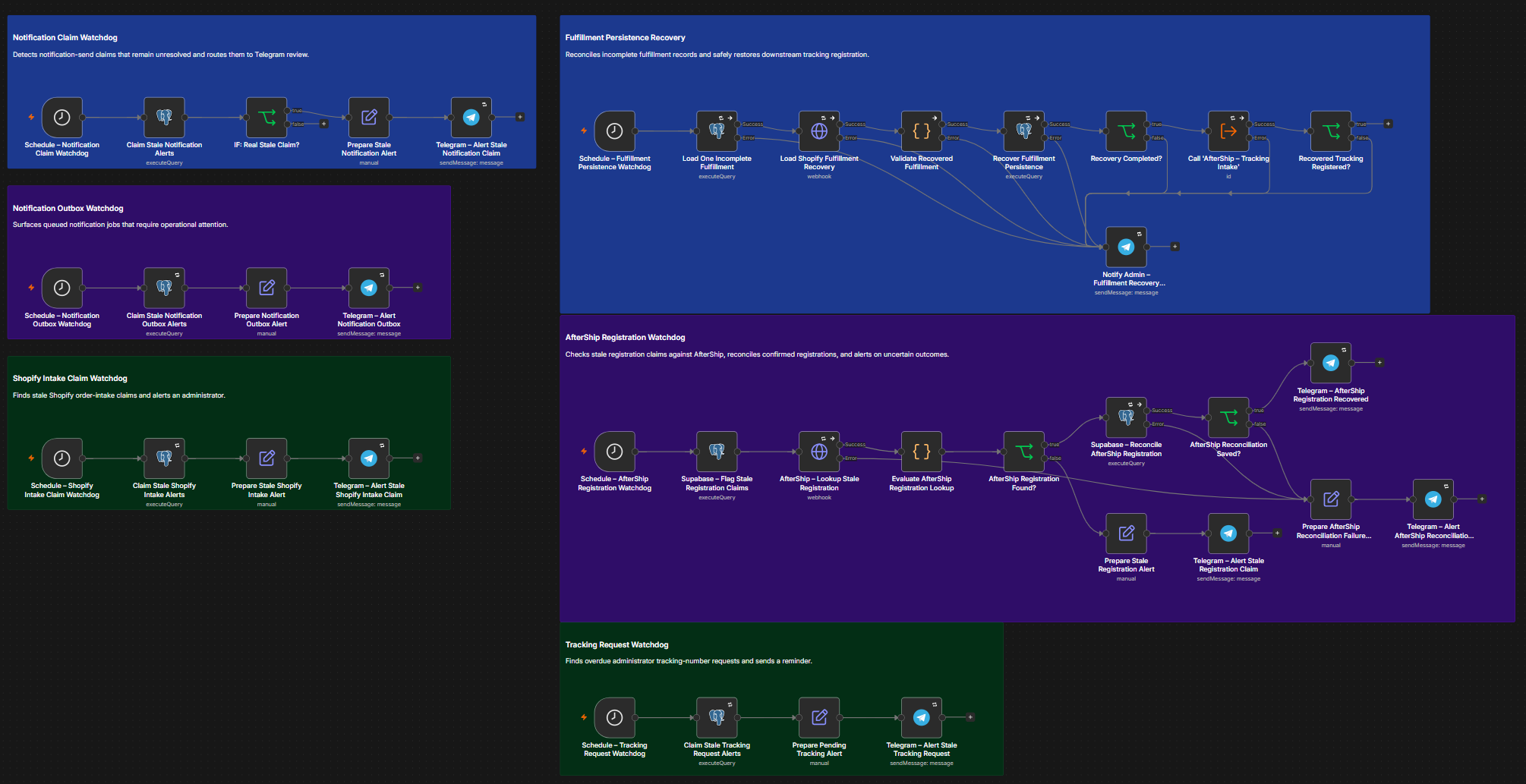

Six recovery workflows
An operations overview showing notification-claim, outbox, fulfillment, registration, and tracking recovery routines.
WORKFLOW OUTPUTS · CONTROLLED TESTS
Customer updates and operational tracking.
Generated using test orders and simulated shipment events. The emails below show the same test order; the spreadsheet is a separate monitoring example.
These screenshots demonstrate sample outputs, not actual customer deliveries or measured production results. Execution logs are no longer available.

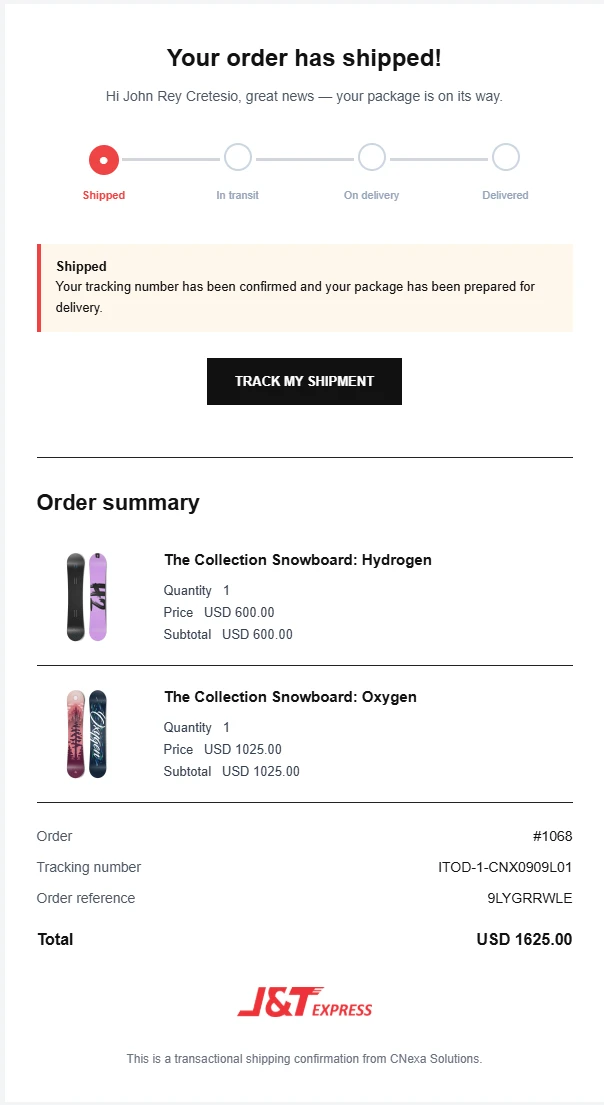

Shipment confirmation
The shipment email presents the shipped status, a tracking link, and the items in test order #1068.

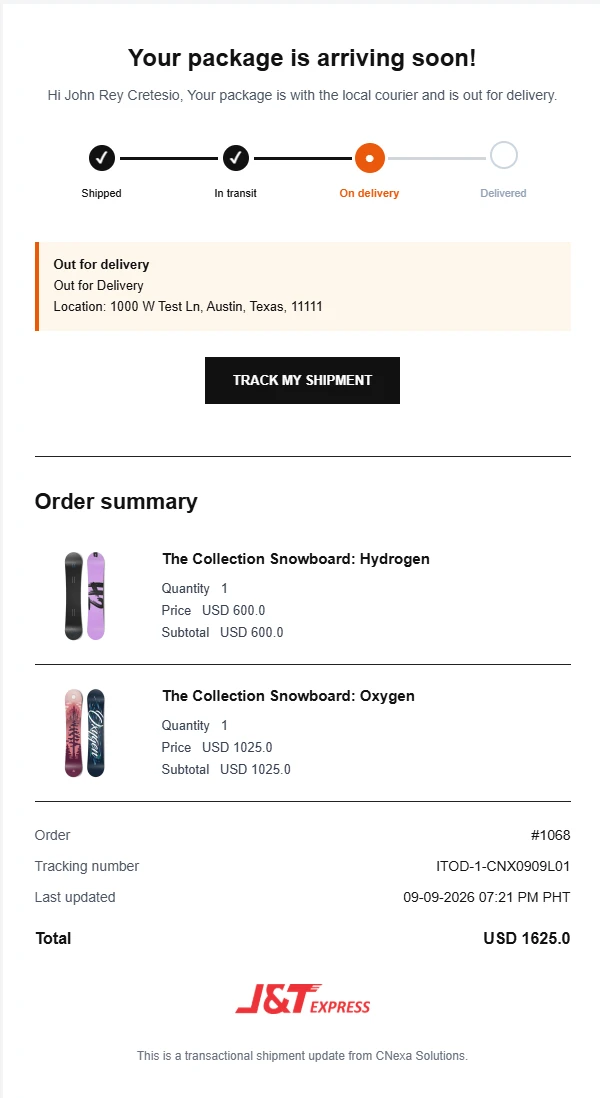

Out-for-delivery update
A second email for the same test order presents the out-for-delivery status, sample location, and updated progress indicator.

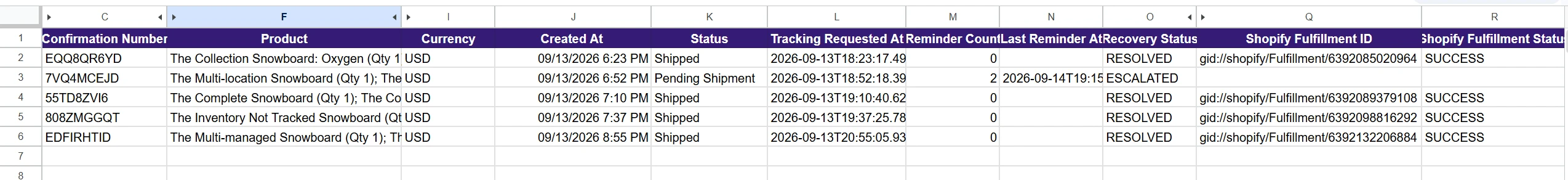

Fulfillment monitoring
A separate test dataset shows shipped records with resolved recovery statuses and a pending shipment marked escalated after two reminders. These rows are not matched to the email examples above.
EVIDENCE & OUTCOMES
What the evidence shows.
The case study documents 11 workflows, 185 nodes, a notification worker, and six watchdogs. These describe implementation scope; they are not a production performance benchmark.
Based on client-reported 500 to 600 monthly orders and an assumed 4 to 6 minutes of manual work per order. Actual savings have not been measured.
Limitations and next steps.
Database function internals and complete production execution evidence were not included in the supplied materials. Production impact still needs measurement.
Technology stack.
- n8n
- Shopify
- AfterShip
- Supabase
- Gmail
- Telegram
Source: owner-supplied case study and diagrams. Scope and test results are reported in the document, not independently audited.
